QV series

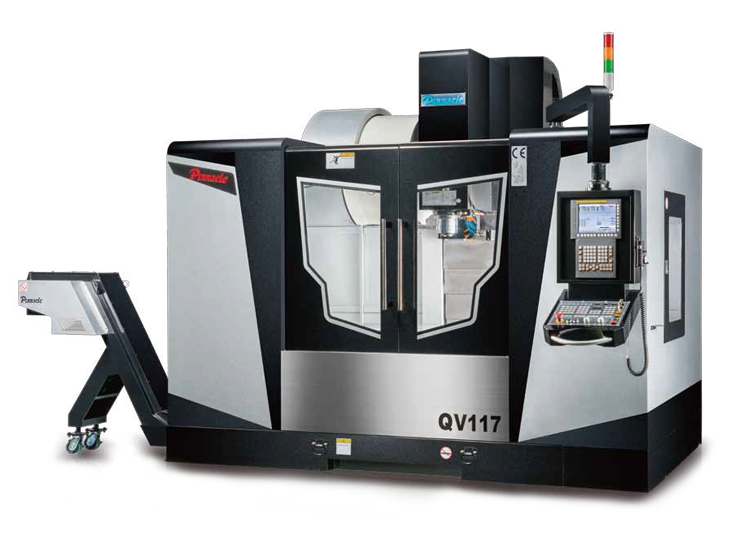

QV117/QV137/QV147
QV's Designed for Extra Value and Built for Optimum Performance
Box Way Series
Now you can get the right VMC's with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way series VMC's are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle VMC in your production line.
Features
- 1140 (1300 / 1400) X 710 x 610 mm Travel
- Rapid Feedrate 20/20/16 m/min
- 15HP / 20HP Spindle Motor
- ISO40 Spindle Taper / ISO50 Spindle Taper
- X, Y & Z Axis Square Way
- 4 Slideway on Base
- Features
- Specifications
- Accessories
- Quality Inspections
- Options

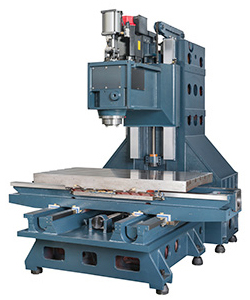

Rugged Construction Assures Optimum Rigidity and Stability.
The major structural parts are manufactured from high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
Box ways on the three axes. Way surfaces are hardened to over HRC55 with over 2 mm depth.
Three axes are equipped with class C3 and 40mm (QV117 / QV127 / QV147) and 50mm (QV159 / QV179 / QV209) diameter precision ball screws.
Counter-balance weight moves on a guide shaft for added stability and straightness accuracy.
Taiwan Patent No.: 177230, China Patent No.: 416211
COUNTER WEIGHT BALANCE SYSTEM
Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China.
RIGID, PRECISION SPINDLE
ASSURES HIGH QUALITY MACHINING
- Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
- Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life.
- The spindle is a cartridge-type.
- Choice of various spindle speeds - 6,000 rpm (ISO50, Belt Type/Gear Type), 8,000 rpm (ISO40/ISO50, Belt Type) 10,000 rpm (ISO40, Belt Type), 12,000 rpm (ISO40, Belt Type).
- The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.
Chips Flushing Nozzles
Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.
Couplings
Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity and keeps the accuracy of axial linear assembly under high speed movement.
Automatic Lubrication System
The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.
Control System
The centralized control panel employs a touch sensing screen for user-friendly operation. The humanized designed control panel has an elegant appearance. Various controllers can be chose - Mitsubishi, Heidenhain, Fanuc and Siemens.
Splash Guard
The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.
| MODEL | QV117 | QV137 | QV147 | |||
|---|---|---|---|---|---|---|
| TABLE | ||||||
| Table Size (mm) | 1300 x 700 | 1500 x 700 | 1600 x 700 | |||
| Travel Ranges (X x Y x Z mm) | 1140 / 710 / 610 | 1300 / 710 / 610 | 1400 / 710 / 610 | |||
| Max. Table Load (kgs) | 1000 | 1200 | 1500 | |||
| SPINDLE NOSE TO TABLE SURFACE (mm) | 110 ~ 720 | 110 ~ 720 | 110 ~ 720 | |||
| T-slot (Width x Distance x Number mm) | 18 x 125 x 5 | 18 x 125 x 5 | 18 x 125 x 5 | |||
| SPINDLE | ||||||
| Tool Shank & Pull Stud | ISO40 | ISO50 | ||||
| Spindle Inner Diameter (mm) | Ø70 | Ø100 | ||||
| Spindle Center to Column (mm) | 760 | 760 | ||||
| Spindle Speed (rpm) Belt | 40 - 8000(10000/12000) | 40 - 6000 (8000) | ||||
| Spindle Speed (rpm) Gear | L40 ~ 1750, H1751 ~ 8000 | L40 ~ 1500, H1501 ~ 6000 | ||||
| Spindle Speed (rpm) Direct-Drive | 10000 / 12000 / 15000 | 10000 | ||||
| Draw Bar Force (kgf) | 950 | 2000 | ||||
| Main Motor (con/30 min Kw) | 7.5 / 11 | 11 / 15 | ||||
| FEED RATE | ||||||
| Rapid Feed Rate (X/Y/Z m/min) | 20 / 20 / 16 | 20 / 20 / 16 | 20 / 20 / 16 | |||
| Feed Rate (X/Y/Z/ mm/min) | 10000 | 10000 | 10000 | |||
| AXIS SERVO MOTOR | ||||||
| Mitsubishi (Kw) | HG354 (3.5) | HG453 (4.5) | HG453 (4.5) | |||
| Fanuc (Kw) | β22/3000is 3.0 (α12i/3000i 3.0) | |||||
| Siemens (Kw) | 1FK7083 (4.17) | 1FK7083 (4.17) | 1FK7083 (4.17) | |||
| Fagor (Kw) | FKM64.30A | FKM64.30A | FKM64.30A | |||
| Heidenhain (Kw) | QSY155D (5.68) | QSY155D (5.68) | QSY155D (5.68) | |||
| AUTO TOOL CHANGER | ISO40 | ISO50 | ||||
| Mag Type | DISK | DISK / CHAIN | ||||
| Cam Type | DAUL ARM | DAUL ARM | ||||
| Tool Selection (Bi-direction) | RANDOM | RANDOM | ||||
| Tool Storage Capacity (PCs) | 24 | 24 / 32 | ||||
| Max. Tool Diameter (mm) | Ø90 | Ø105 / Ø127 | ||||
| Max. Tool Length (mm), Weight (kgs) | 250, 8 | 350, 15 | ||||
| MISCELLANEOUS | ||||||
| Air Requirement (Kg/cm²) | 6 | 6 | 6 | |||
| Voltage | 220V, 3Ph, 50 / 60Hz | 220V, 3Ph, 50 / 60Hz | 220V, 3Ph, 50 / 60Hz | |||
| Power Requirement (KVA) | 30 | 30 | 30 | |||
| Coolant Tank Capacity (L) | 350 | 350 | 350 | |||
| Machine Weight (Kgs) | 9000 | 10000 | 11000 | |||
| Machine Height (mm) | 3000 | 3000 | 3000 | |||

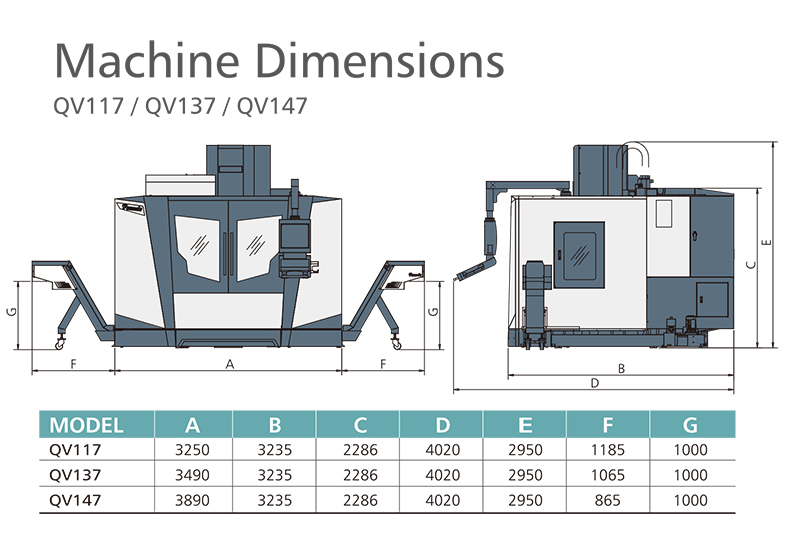

| Floor Space (L x W mm) | 3250 × 3235 | 3490 × 3235 | 3890 × 3235 | |||
All Specifications And Designs Are Subject To Change Without Notice.
Accessories
- Air blast through spindle
- Air blast for workpiece (nose)
- Coolant flushing system
- 3 axes telescopic covers
- Full splash guard
- Centralized automatic lubrication system
- Working lamp
- Operation status light
- Cooling system
- Air gun and water spray-gun
- MPG handwheel
- Heat exchanger
- RS-232 Interface
- Rigid tapping
- Spindle oil cooler
- Adjusting tools and box
- Leveling bolts and pads
- Operation and programming manual
Control System
- MITSUBISHI M80 / M830
- FANUC 0i-MF / 31i-MB
- HEIDENHAIN TNC620 / TNC640
- SIEMENS 828D / 840D
- FAGOR 8055i Plus / 8060FL / 8060
Quality Through Precision Inspections
Each Pinnacle machine is subject to dynamic and static accuracy tests.
Pinnacle machine accuracy meets VDI 3441, ISO 10791, JIS B6336 and ASMEB5 standards.
Laser Inspection
Ball Bar Inspection
Right Angle Test On X And Y Axes
Dynamic Vibration
Noise Inspection
Three-dimensional coordinate measurement
ARM TYPE ATC
The 24-tool arm type magazine is activated by electric motor transmitted by U-cam mechanism, featured with the fastest tool change speed and it bi-directional random tool selection. (option)
COOLANT THROUGH SPINDLE
Coolant circulates through spindle offer a direct cooling effect on tools, removing heat that occurs during machining. Combining with filter tank system. (option)
CHAIN-TYPE ATC
The chain-type ATC is driven by a cam system and features rapid and precise locating, quick tool change and stable operations.
The chain-type ATC features bi-directional random tool selection. (option)
20 BAR HI-PRESSURE PUMP AND TANK
20μm filter and 600L capacity to assure CTS system offers the highest efficacy. (option)
ARMLESS TYPE ATC
20-tool armless-type magazine features simplified construction, safety, easy maintenance and trouble-free operations. (option)
GEAR BOX
The GearBox offers high torque and provides heavy cutting capability. (option)
CHIP CONVEYOR
Chip conveyor device in the front side of machine removes chips efficiently. (option)
