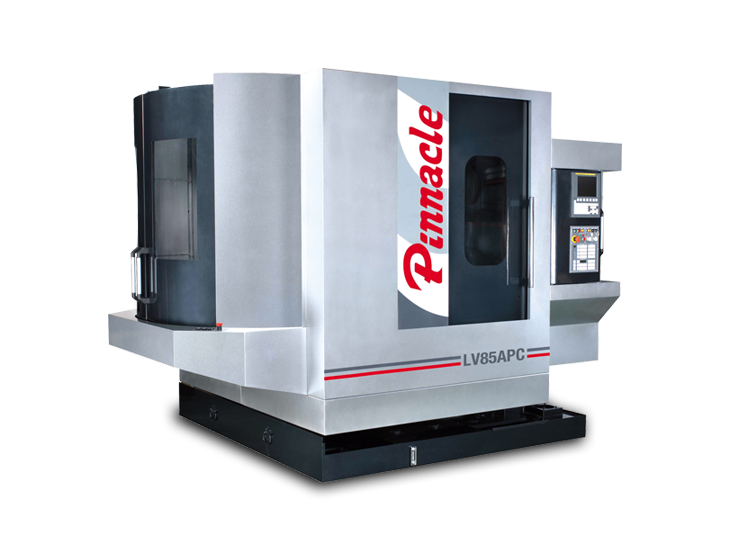

Pinnacle LV-85APC Machining Center, with excellent features, provides perfect machine results and enhanced productivity when it works in conjunction with automatic pellet changer. Hydraulic rotating mechanism features fast, stable and smooth operations. Thinks to its outstanding design, the APC provides best performance over lifetime. When you consider increased efficiency and decreased cost, Pinnacle LV-85APC Machining Center is truly the best choice.

Features

• 850 X 560 x 560 mm Travel
• Rapid Feedrate 32 / 32 / 32 m/min
• 10 HP Spindle Motor
• ISO40 Spindle Taper
• Spindle Speed 8,000 rpm, 10,000 rpm (option)
• Direct drive 12,000 rpm (option)
• X, Y & Z Axis Linear Way

• Features
• Specifications
• Accessories
• Why Chooses
• Options

MODEL	LV85APC
TABLE
Table Size (mm)	850 x 500
Travel Ranges (X x Y x Z mm)	850 / 520 / 560
Max. Table Load (kgs)	300 KG one-sided
Spindle Nose to Table Surface (mm)	100 ~ 660
T-Slot (WxNxP mm)	18 x 5 x 100
Pallet Change Time (sec)	9
Pallet Exchange Method	+180°Rotation
Locking Strength	3760kg@60kg/cm2
SPINDLE
Tool Shank & Pull Stud	ISO40
Spindle Inner Diameter (mm)	Ø60 (Ø70)
Spindle Center to Column (mm)	620
Spindle Speed (rpm) Belt	60-8000(10000)
Spindle Speed (rpm) Gear	L40-2000, H2001-8000
Spindle Speed (rpm) Direct drive	12000(15000)
Draw Bar Force (kgf)	700 (950)
Main Motor (con/30 min Kw)	5.5 / 7.5
FEED RATE
Rapid Feed Rate (X/Y/Z m/min)	32 / 32 /32
Feed Rate (X/Y/Z/ mm/min)	10000
AXIS SERVOMOTOR
Mitsubishi kW	HF354 (3.5)
Fanuc kW	β22/20000 is 2.5 or (α12/3000 i 3.0)
Siemens kW	1FK7 063 2.9
Fagor kW	FXM53.3 3.1
Heidenhain kW	QSY155B 2.47
AUTO TOOL CHANGER
MAG TYPE	DISK / CHAIN
Cam Type	DAUL ARM
Tool Selection (Bi-direction)	RANDOM
Tool Storage Capacity (PCs)	24/30T(Opt.)
Max. Tool Diameter (mm)	Ø90/ Ø76 (Opt.)
Max. Tool Length ,WEIGHT	250 mm, 8 KGs
MISCELLANEOUS
Air Requirement (Kg/cm2)	6
Voltage	220
Power Requirement (KVA)	20
Coolant Tank Capacity (L)	200
Machine Weight (Kgs)	6800
Floor Space (L x W mm)	3300 x 4000 x 2900
Packing Size (L x W x H mm)	4050 x 2300 x 2540

All Specifications And Designs Are Subject To Change Without Notice.

Accessories

• Air blast through spindle
• Air blast for workpiece (nose)
• Coolant flushing system
• 3 axes telescopic covers
• Full splash guard
• Centralized automatic lubrication system
• Working lamp
• Operation status light
• Cooling system

• Air gun and water spray-gun
• MPG handwheel
• Heat exchanger
• RS-232 Interface
• Rigid tapping
• Spindle oil cooler
• Adjusting tools and box
• Leveling bolts and pads
• Operation and programming manual

Control System

• MITSUBISHI M80 / M830
• FANUC 0i-MF / 31i-MB
• HEIDENHAIN TNC620 / TNC640
• SIEMENS 828D / 840D
• FAGOR 8055i Plus / 8060FL / 8060
